Flexible Duct Connector

Flexible Duct Connector – Vibration & Noise Isolation for Ducting Systems

Durable, Airtight Solution for Fans, AHUs & Duct Installations

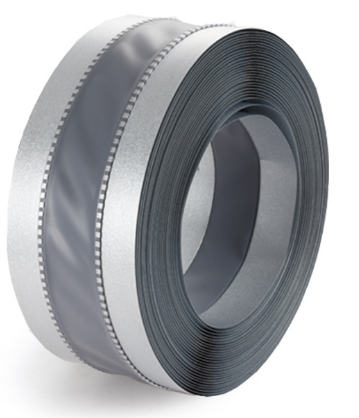

The Flexible Duct Connector is a high-performance joint designed to eliminate noise and vibration transmission between fans, air handling units, and ductwork. It consists of a durable PVC fabric layer bonded between two strips of galvanised steel, providing both flexibility and structural integrity.

Engineered for use in commercial and industrial ventilation systems, this connector improves system longevity, reduces acoustic transmission, and ensures a secure, airtight seal—compliant with EN 1507:2007 Class D airtightness standards.

✅ Key Features:

• Vibration & Noise Isolation
  Prevents transmission of mechanical vibrations and noise into the duct system.

• Durable Construction
  Made from galvanised sheet metal with a high-quality PVC centre fabric layer.

• Airtight Performance
  Compliant with Class D (EN 1507:2007) airtightness standards, tested at 2000 Pa.

• ATEX Compliant
  Suitable for use in explosive environments.

• Temperature Resistance:

  • Standard PVC: -30˚C to +80˚C

  • Custom materials (on request): Silicone, Polyurethane, Neoprene for higher temperature, chemical, or abrasion resistance.

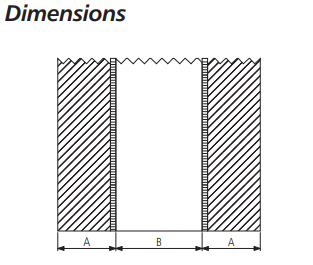

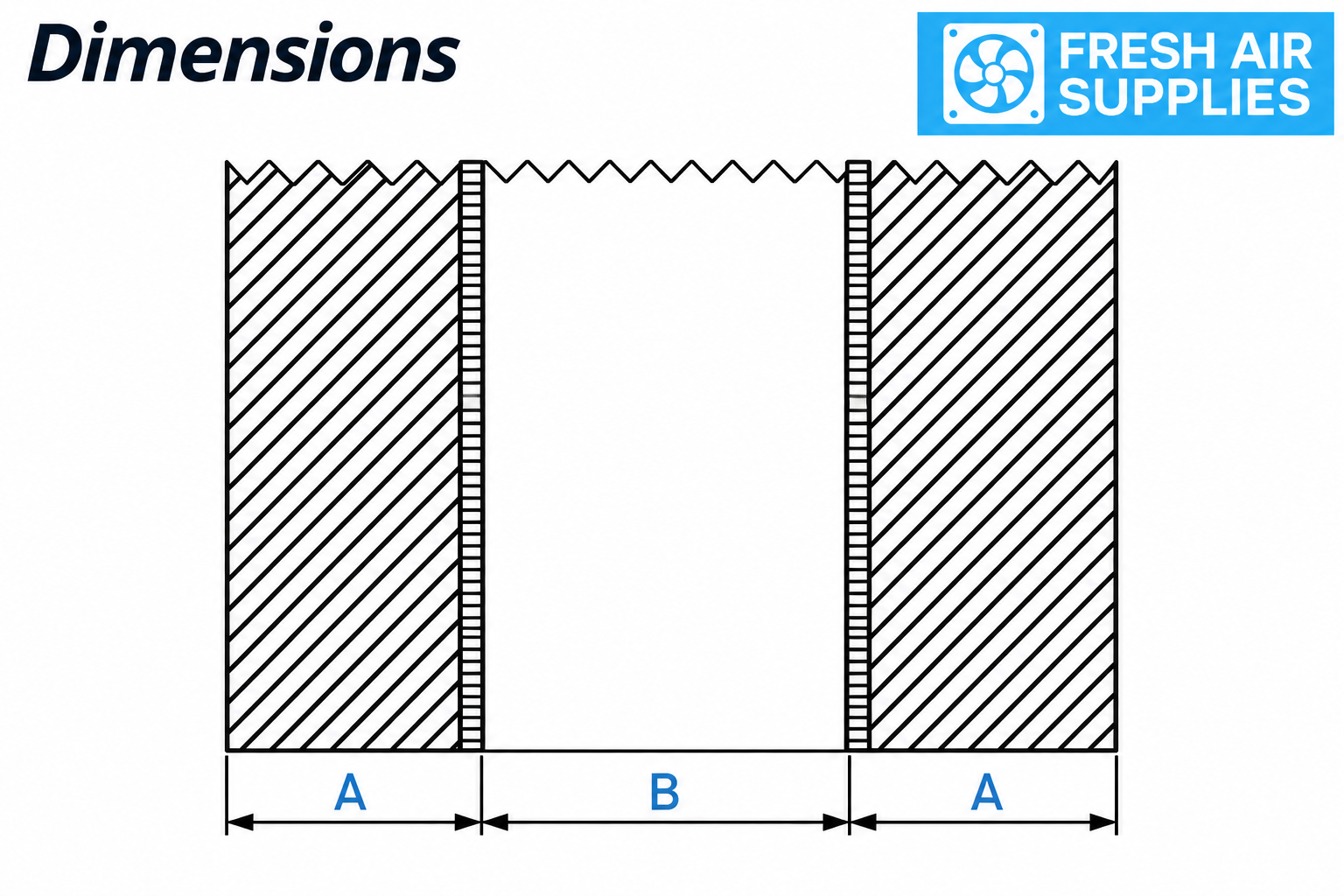

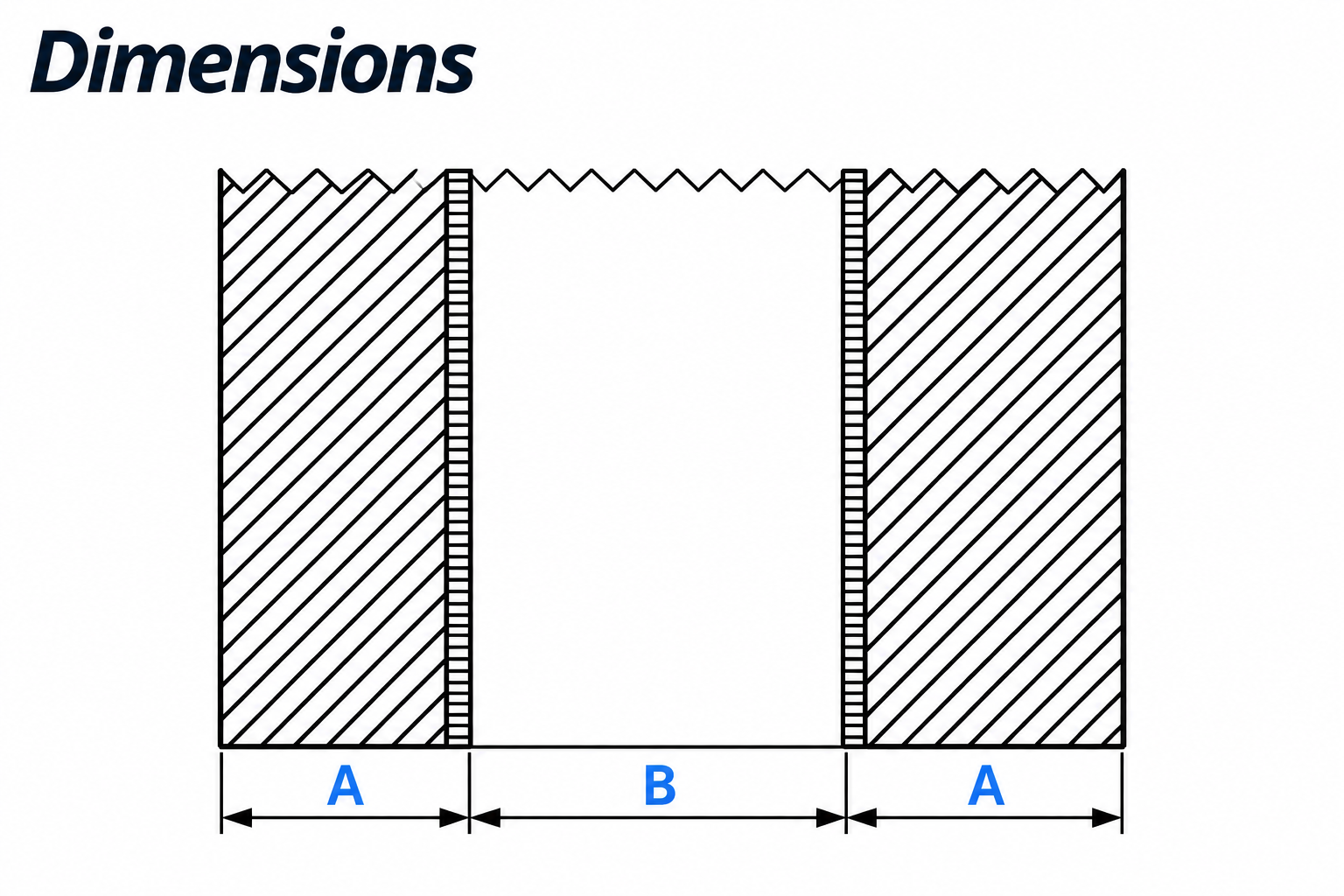

Standard Dimensions:

• Metal Width (A): 70mm

• Fabric Width (B): 100mm

• Roll Length: 25m

• Custom sizes available on request

Applications:

• Air handling units (AHUs)

• Supply and extract fans

• Commercial duct systems

• Industrial HVAC installations

• ATEX-rated ventilation systems

Need a custom size or material
Contact our technical team at 028 8675 2336 or sales@freshairsupplies.co.uk

Temperature range from -30˚C / +80˚C with our high quality PVC however we can manufacture from Silicone, Polyurethane or Neoprene on request to extend the temperature resistance, wear resistance and chemical resistance dependent on the application.

The design of the AMT flexible duct connector provides excellent water and air tightness performance according to class D requirements of EN 1507:2007. The tightness class compliance was tested at 2000 Pa. The product complies with ATEX requirements and as a result can be used in explosive environments.
