Quick Duct Explained – When Do You Need an Adapter or Clamp?
If you’ve ever stood on site with a length of spiral duct in one hand and a section of quick-fit duct in the other, you’ll know the question…
“How are these actually meant to join?”
Quick duct (also called express or clamp-together duct) is becoming more common on commercial installs because it’s fast, clean and easy to work with. But to make it work properly, you need the right components.
The two key parts are:
- The Quick Duct Connecting Clamp
- The Quick Duct Adapter (for converting spiral duct)
Let’s break it down properly.
What Is Quick / Express Duct?
Quick duct is circular ducting manufactured with a turned-out (rolled) edge on each end.
That rolled edge is what allows a clamp to lock two pieces together mechanically — instead of relying on screws through the side of the duct.
Why do installers like it?
- Faster to install
- Easy to take apart later
- Cleaner looking joints
- Strong mechanical connection
- Great for commercial projects
It’s especially handy on jobs where the duct run might need altered later.

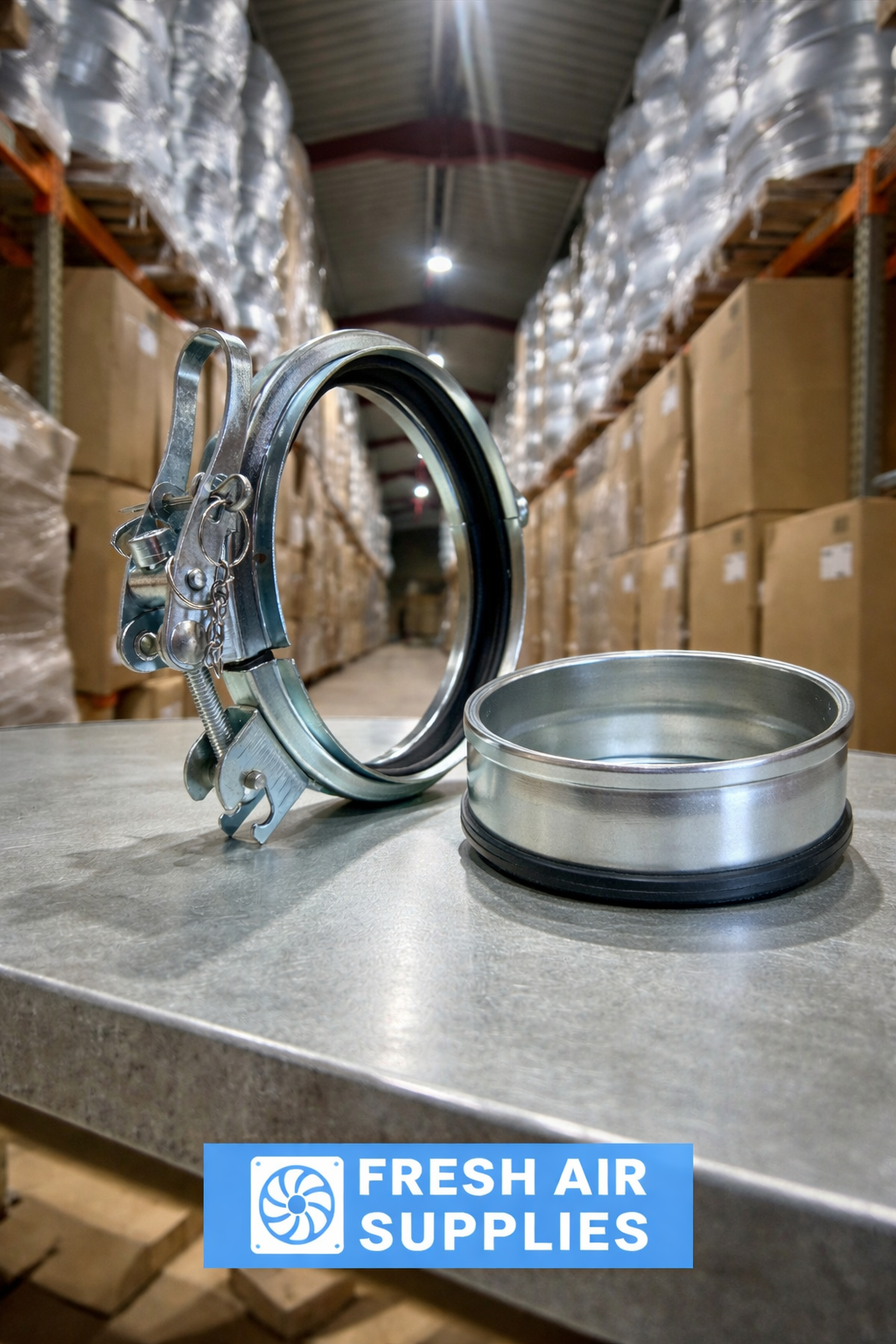

What Does the Quick Duct Clamp Do?
The clamp is what actually joins two rolled-edge sections together.
It fits over both edges, snaps closed, and when tightened, pulls the two sections firmly together. Most include a gasket for improved airtightness.
It’s simple, strong, and much neater than multiple self-drillers around a joint.
If you’re working fully in a quick duct system — this is the part doing the heavy lifting.
But What If You’re Using Spiral Duct?
This is where most people get caught out.
Standard spiral duct doesn’t have a turned-out edge. It has a plain end designed for slip connections.
So, if you’re trying to connect spiral duct into a quick-fit system, you can’t just clamp it directly.
You need a Quick Duct Adapter.
What Does the Quick Duct Adapter Do?
The adapter fits into the end of your spiral duct and creates that rolled-edge profile needed for the clamp system.
Once installed, your spiral duct effectively becomes “quick duct compatible”.
To connect spiral to quick duct properly, you’ll need:
- Quick Duct Adapter
- Quick Duct Clamp
- Self-drilling screws to secure the adapter
- Duct sealant for airtightness
Once fitted, the system works exactly as it should.
When Is Quick Duct Worth Using?
Quick duct really comes into its own on:
- Commercial ventilation installs
- Larger duct runs
- Projects where time on site matters
- Installations that may need future changes
On bigger jobs, the time saved adds up quickly.
Sizes Available
Our Quick Duct Adapters and Clamps are stocked in the common circular sizes:
100mm
125mm
150mm
200mm
250mm
315mm
400mm
Just make sure your clamp and adapter match your duct diameter.
Still Not Sure What You Need?
If you’re halfway through a job and unsure which way to go, just give the Fresh Air Supplies team a shout.
We deal with spiral duct and clamp systems every day — we’ll point you in the right direction.
